Weipu ST12 Connectors
Weipu connector ST1210 series, 2 3 4 5 6 7 9-pin, IP67 welded waterproof hlau round poj niam plug socket connector.ST12 Series nrog ntau cov tub ntxhais (2-9} core) tsim kom haum nrog cov kev xav tau sib txawv hauv qab no cov yam ntxwv tseem ceeb.
Hauj lwm lawm
Distributor Waterproof Hluav Taws Xob Hluav Taws Xob Connectors
1. Khoom Taw Qhia Ntawm Lub Hwjchim Hlau Txuas Txuas
Cov khoom siv hluav taws xob tsis muaj dej tsis sib haum yog ua los ntawm tooj dag nrog chrome plating thiab muaj hluav taws kub zoo, compressive, tiv thaiv tawg thiab tiv thaiv deformationproperties.Gold-plated hu, muaj zog corrosion kuj thiab hluav taws xob conductivity, muaj peev xwm electively tiv nrog kev hloov ntawm kub. nce uas tshwm sim los ntawm tam sim no; threaded coupling yog ib qho yooj yim rau kev khiav lag luam thiab yooj yim rau nruab; Tam sim no ntsuam xyuas: 3A / 5A / 13A; Cov khoom yog IP67 nyob rau hauv cov kev twb kev txuas.
2. Khoom Specification ntawm hlau ntsaws
| Tus naj npawb ntawm kev sib cuag | 2 | 3 | 4 | 5 | 6 | 7 | 9 |
| Rated Tam sim no | 13A | 5A | 3A | ||||
| Tiv tauj Diameter | Φ1.6 hli | Φ1 hli | Φ{0}}.7 hli | ||||
| Rated Tam sim no | 250V | 200V | 180V | 125V | |||
| Hu rau Rasistance | 2mΩ | 5mΩ | 10mΩ | ||||
| Kev sib txuas | Xov | ||||||
| Kev txiav txim | Solder | ||||||

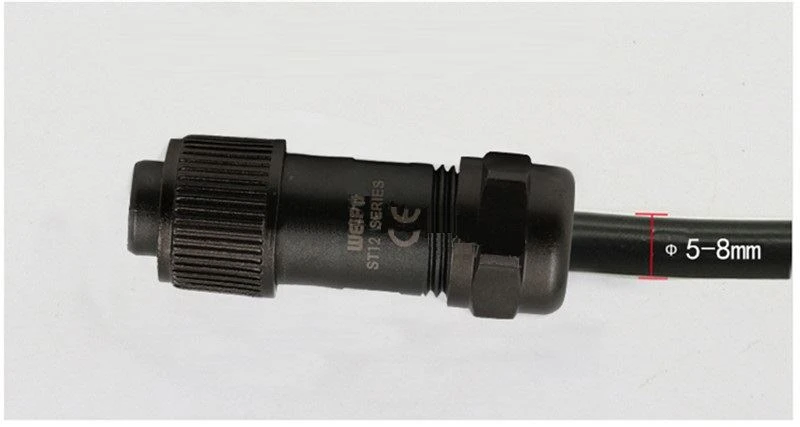

| Cable Diameter | 5-8 hli | ||||||
| Qhov kub thiab txias | -40 degree ∽85 degree | ||||||
| Ntxig Khoom | PPS, Max Kub 260 degree | ||||||
| Cov ntaub ntawv tiv tauj | Brass Nrog Kub Plating | ||||||
3. Daim ntawv thov ntawm Weipu ST Series
Lub tshuab nrog kev ua haujlwm zoo yog lub hauv paus ntawm kev ua haujlwm ruaj khov. Cov connectors uas tsim los ntawm WEIPU tuaj yeem ua haujlwm tau zoo thiab ruaj khov txawm tias nyob rau hauv cov xwm txheej hnyav. Cov khoom lag luam ntawm WEIPU xa mus rau kev tsheb ciav hlau, tsheb tshiab lub zog, kev lag luam automation, lub zog, photovoltaics, theem teeb pom kev zoo, kev nthuav qhia, 3C cov khoom, kev kho mob, kev ua liaj ua teb thiab lwm yam.
4. Tuam txhab Profile
Xiamen KABASI Electric Co., Ltd. nrhiav tau nyob rau hauv 2015, yog ib lub chaw tsim khoom ntawm ncig, dej tsis qab, hnyav hnyav, tub rog connectors (plug thiab socket), hlau hlua, hlau pob qij txha, cable caj pas, cable tiv thaiv saj zawg zog hose, muaj ntau lawm cov khoom, exquisite technology thiab advanced xeem cov txheej txheem. Peb qee cov khoom lag luam tau siv dav hauv aerospace, tub rog, tsheb, hluav taws xob, tshuab, automation, nrog rau kev lag luam hluav taws xob.
5. Ntim, Xa & Them Nyiaj
6. FAQ
Q1. Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?
Peb yog cov chaw tsim khoom ntawm cov khoom siv dej tsis sib haum nrog peb tus kheej lub Hoobkas thiab tuam txhab lag luam.
Q2. Lub sijhawm ua haujlwm yog dab tsi?
Ib txwm hais lus, nws thov rau 5-30 hnub rau kev tsim khoom loj tshwj tsis yog thaum lub caij so so.
Q3: Yuav ua li cas txog 4. OEM / ODM Kev Pabcuam?
Peb cov kws tshaj lij R & D dept tsim cov khoom sib txawv rau cov nqi sib txawv thiab cov kev xav tau sib txawv.
Q4. Koj muaj ntawv pov thawj dab tsi?
Cov khoom siv hluav taws xob tau txais daim ntawv pov thawj CE Rohs rau peb cov khoom.
Cim npe nrov: Weipu ST12 Connectors, Suav teb, manufacturers, hoobkas, customized
