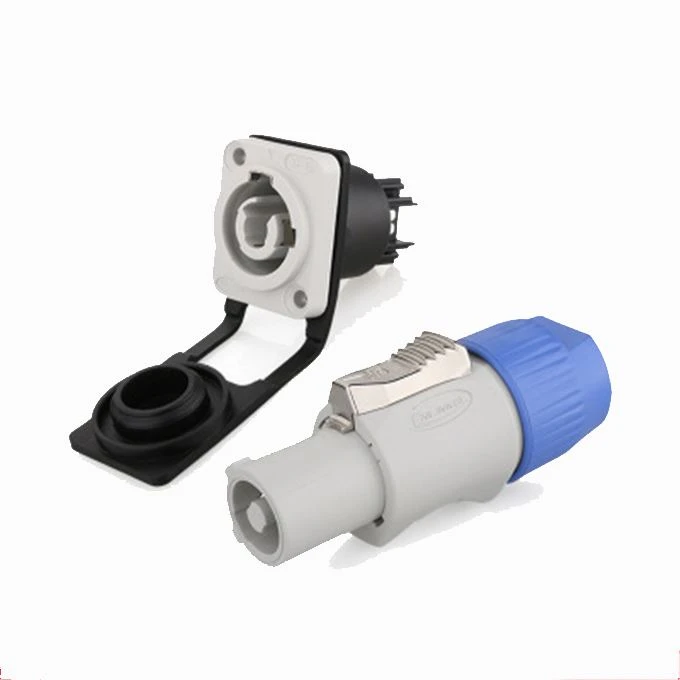

Powercon Connector Wiring Ib Neutrik Speakon Connector
YF24 yas suab connector powercon connector yog ib qho yooj yim rau kev khiav lag luam vim nws peculiar locking txoj kev, thiab muaj xim kom paub qhov txawv tam sim no cov tswv yim thiab tso zis. Siv dav hauv cov khoom siv suab thiab video
Hauj lwm lawm
Parameter ntawm neutrik audio connector
MOQ: 50 pcs
Lub sij hawm xa tuaj: 3-7 hnub ua haujlwm
Qhov chaw ntawm Keeb Kwm: Fujian, Suav
Hom Lub Npe: KABASI
Tus Qauv Zauv: YF24
Qauv: BNC
Daim ntawv thov: Lub zog
Tub los ntxhais: txiv neej thiab poj niam
Pin: 3 pin
Khoom npe: IP44 / IP67 3pin audio connector
kev sib txuas: bayonet
Termination: solder
cable txoj kab uas hla: φ8mm ~ φ12mm
Kev ntsuas ntawm hlau: 2.5mm2-4 hli2/14-12AWG
Qhov kub thiab txias: -40 degree ~ +80 degree
Plhaub khoom: Kev ua haujlwm siab engineering yas
Cov khoom siv rwb thaiv tsev: Kev ua haujlwm siab engineering yas
Mating voj voog: 500
|
Kev sib txuas hom |
Latching Lock txuas |
|
Kev tiv thaiv qib |
IP44 / IP65 |
|
Cable specification |
2.5 hli2~ 4 mm2/14-12 AWG |
|
Txoj kab uas hla |
Φ8mm ~ Φ12mm |
|
Hu rau txoj kab uas hla × Qty |
Φ2.0×3 |
|
Kev ntsuas tam sim no (A) |
20A |
|
Kev khiav hauj lwm voltage (AC.V.rms) |
500V |
|
Nrog voltage (AC.V) 1min |
2500V |
|
Tiv tauj tiv thaiv |
<1mΩ |
|
Rwb thaiv tsev tsis kam |
>500MΩ |
|
Durability |
Ntau dua los yog sib npaug rau 500 mating & unmating cycles |
|
Kev ntsuas kub |
-40 degree ~ 80 degree |
|
Txoj kev txuas cable |
Solder |
Tsim kev kos duab ntawm lub suab txuas YF24
Khoom kom zoo dua ntawmneutrik audio
1.Xauv 3- tus pin ntaus ntawv txuas nrog cov neeg sib cuag rau nruab nrab, ncaj, ua ntej haum rau hauv av.
2.High tam sim no muaj peev xwm 20A / 250VAC.
3.Siv cov xim sib txawv (xiav cov tswv yim) rau kev tawm tswv yim thiab cov zis (grey output) tswj kom tsis txhob muaj kev sib cuam tshuam.
4. Ceev thiab yooj yim xauv qhov system.
5.Siv lub teb chaws As Mes Lis Kas imported beryllium tooj liab rau nyiaj-plated ob qhov kev ruaj ntseg zoo, ua kom muaj kev ruaj ntseg tam sim no thiab kev tswj qhov kub thiab txias.
6.Cov khoom siv dej tsis sib haum raws li IP65 / IP67 tiv thaiv qib hauv lub xeev sib dhos.
7.Rated tam sim no: 20A rms.
8.Unique puab core tooj liab koob tiv thaiv qhov hluav taws xob tsim.
FAQ
Q1. Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?
Peb yog cov kws tshaj lij kev tsim cov suab sib txuas nrog peb tus kheej lub Hoobkas thiab tuam txhab lag luam.Yog li peb tuaj yeem muag peb cov khoom ncaj qha.
Q2. Lub sijhawm ua haujlwm yog dab tsi?
Ib txwm hais lus, nws thov rau 5-30 hnub rau kev tsim khoom loj tshwj tsis yog thaum lub caij so so. Q3: Yuav ua li cas txog OEM / ODM Kev Pabcuam?
Peb cov kws tshaj lij R & D dept tsim cov khoom sib txawv rau cov nqi sib txawv thiab cov kev xav tau sib txawv.
Q4. Koj muaj ntawv pov thawj dab tsi?
Cov khoom siv hluav taws xob tau txais CE RoHS UL daim ntawv pov thawj rau peb cov khoom.
Q5.Koj lub sijhawm them nyiaj yog dab tsi?
Peb nyiam T / T, escrow, MasterCard credit card, e-Checking, Paypal.
Q6: Kev faib khoom ntawm cov khoom lag luam nyob qhov twg?
Xiamen, Fujian xeev, Suav.
